How to Fix Electrolux Dishwasher i60 Error Code

In this guide, we’ll discuss the Electrolux dishwasher i60 error code, along with its related error codes. We’ll help you understand what this error means, what causes it, and provide troubleshooting steps as well as effective solutions to fix it.

So, if you’re dealing with the i60 error on your Electrolux dishwasher, stay tuned as we show you how to fix the Electrolux dishwasher i60 error code. Let’s get started!

Understanding the Electrolux Dishwasher i60 Error: Causes and Effective Solutions

The Electrolux dishwasher i60 error code, which may also appear as i61, i62, i63, i64, i65, i66, i67, i69, i6A, i6B, or i6C, usually points to an issue with the heating element. This error is essentially a “Heater Error,” signifying that your dishwasher has faced difficulties in raising the water temperature by at least 1°C within a span of 3 minutes during either the wash or rinse cycle.

Please note that the Electrolux dishwasher i60 error code typically appears only when your appliance is in service diagnostic mode.

Common Factors Behind the Electrolux Dishwasher i60 Error Code

Let’s explain each of these potential factors that can contribute to the Electrolux dishwasher i60 error code:

• A damaged or disconnected wiring harness can disrupt the communication between the heater assembly and the main board of the dishwasher.
• The thermostat is responsible for monitoring and regulating the dishwasher’s water temperature. If it’s malfunctioning or inaccurate, it may not signal the heating element to warm the water to the desired temperature, triggering the i60 error.
• The heating element is crucial for raising the water temperature during the wash and rinse cycles. If it’s defective or damaged, it may fail to heat the water adequately, leading to the i60 error.
• The NTC thermistor (Negative Temperature Coefficient thermistor) is a sensor that measures the water temperature. If it’s not functioning correctly, it can provide inaccurate temperature readings, causing the dishwasher to struggle to achieve the desired temperature and triggering the error code.
• When the wash motor doesn’t rotate efficiently or if the impeller (the part responsible for circulating water) is broken, the water inside the heater tube may heat up too quickly. This can lead to inaccurate temperature readings and result in the i60 error.
• Over time, mineral deposits, particularly calcium, can accumulate on the heating element. This buildup insulates the element, making it less effective at heating water. This reduced efficiency can cause the dishwasher to take longer to reach the desired temperature, triggering the error.
• The main PCB is the dishwasher’s control center. If it’s damaged or malfunctioning, it may fail to send the correct signals to the heating element, leading to temperature-related issues and the i60 family error code.

Fixing the Electrolux Dishwasher i60 Error code: Step-by-Step Troubleshooting and Solutions

Safety Precaution: Before conducting any troubleshooting or repairs on your dishwasher, always ensure that it is unplugged or disconnected from the power source to prevent electrical hazards. Safety first!

Here are the solutions to resolve the Electrolux dishwasher i60 error code:

1. Check the heating element wiring connection
   • Inspect the wiring harness connected to the heating element. Ensure there are no loose or disconnected wires. Reconnect any loose connections securely.

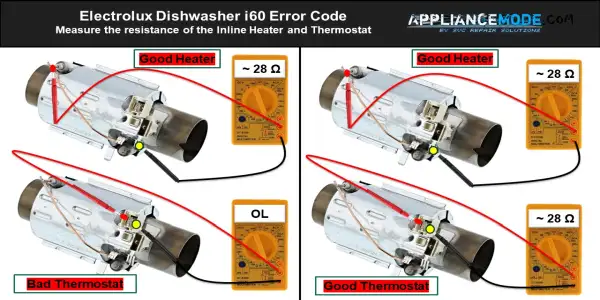

2. Measure the resistance of the heating element using an ohmmeter
   • For heating elements operating at 120 volts
     , you should get a reading of approximately 17 ohms.
   • For those at 220 volts, the reading should be around 28 ohms. Replace the heating element if the readings are significantly different.
3. Check the resistance of the thermostat using an ohmmeter
   • Test the thermostat’s resistance with an ohmmeter. Thermostats with a self-reset at 98°C (208°F) should read between 0.1 and 1.2 ohms. If the reading is outside this range, consider replacing the thermostat.
4. Check the resistance of the thermal fuse using an ohmmeter
   • Measure the resistance of the thermal fuse using an ohmmeter. A thermal fuse at 206°C (403°F) should have a reading between 0.1 and 1.2 ohms. If the reading falls outside this range, replace the thermal fuse.
5. Check the NTC sensor with your multimeter
   • Use a multimeter to check the resistance of the NTC thermistor. At a temperature of 25°C (77 °F), the reading should be around 4.8 KΩ. If the reading is significantly different, consider replacing the NTC sensor.
6. Check the pressure switch
   • To check the pressure switch, first ensure that your dishwasher is disconnected from power.
   • Locate the pressure switch, which is usually situated near the bottom of the dishwasher’s tub.
   • Inspect the pressure switch for any visible damage, loose wires, or debris that might be obstructing its function.
   • Using a multimeter, measure the resistance of the pressure switch.
   • If the pressure switch is out of spec or shows signs of damage, consider replacing it.
7. Replace the main board
   • If the Electrolux dishwasher i60 error code continues to appear despite conducting the troubleshooting steps mentioned earlier, it may indicate an issue with the main board. Replacing the main board should resolve the problem.

Conclusion

Tackling the i60 error code on your Electrolux dishwasher is achievable by following the provided troubleshooting steps. By checking and, if necessary, replacing components such as the heating element, thermostat, thermal fuse, and NTC sensor, you can effectively resolve the issue and enjoy hassle-free dishwashing once again. If all else fails, consider replacing the main board to ensure smooth operation.
