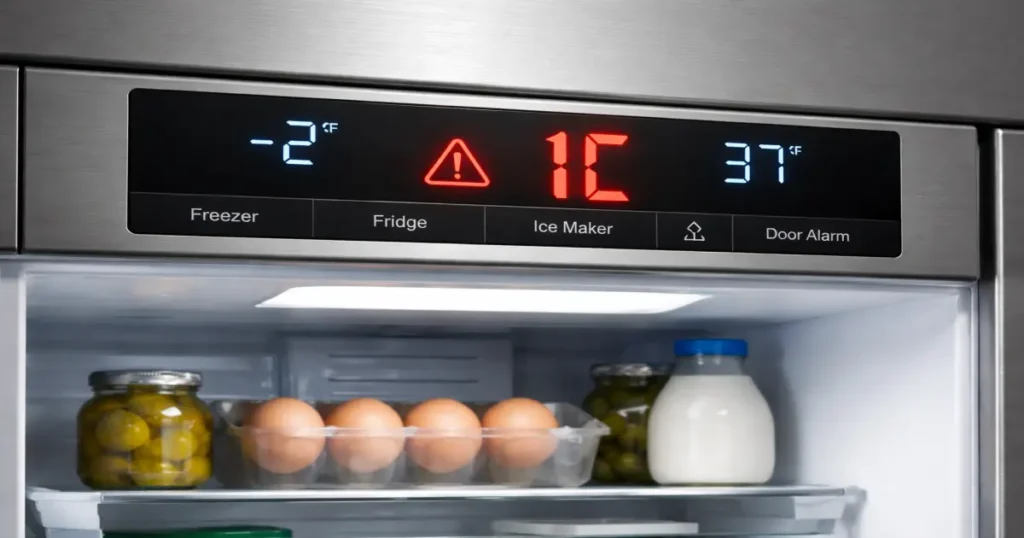

As an expert technician, I have diagnosed the Samsung refrigerator with error code 1C as a Freezer Sensor (Thermistor) failure. This code triggers when the Main Control Board detects a communication break, a short circuit, or an out-of-range resistance reading from the sensor located inside the freezer compartment.
Diagnostic Report: Error Code 1C
Explanation of Error:
The 1C error signifies that the Freezer Sensor is no longer providing accurate temperature data to the Main Control Board. Without this data, the refrigerator cannot regulate the cooling cycle effectively, which may lead to the compressor running constantly or not at all. This is often caused by a defective thermistor, moisture intrusion in the wiring harness, or a loose connection at the control module.
Samsung Refrigerator with Error Code 1C: Step-by-Step Troubleshooting:
- Hard Reset: Disconnect the refrigerator from the power source for at least 10 minutes. This clears the temporary memory of the Main Control Board. If the
1Ccode returns immediately upon powering up, proceed to hardware testing. - Access the Sensor: Remove the freezer shelves and the rear evaporator cover panel. The Freezer Sensor is typically a small, white plastic-encased component clipped to the evaporator coil or mounted on the side wall.
- Visual Inspection: Check the wiring leading to the sensor for signs of corrosion, frost damage, or broken wires. Ensure the connector is firmly seated.
- Resistance Testing: Disconnect the Freezer Sensor and use a multimeter set to the “Ohms” setting to test the component’s resistance.
- Board Check: If the sensor tests within the correct range, check the continuity of the wiring harness back to the Main Control Board (usually located in a compartment on the back or top of the fridge).
Expected Ohmic/Resistance Values:
Samsung thermistors are NTC (Negative Temperature Coefficient) sensors. Their resistance increases as the temperature decreases.
- At 77°F (25°C): Approximately 5,000 Ω (5k Ω)
- At 32°F (0°C): Approximately 13,200 Ω (13.2k Ω)
- At 0°F (-18°C): Approximately 42,200 Ω (42.2k Ω)
- Note: If the multimeter reads “OL” (Open Loop) or 0 Ω (Short), the sensor is defective and must be replaced.
Estimated Repair Cost:
- Freezer Sensor part: $20 – $50 USD.
- Main Control Board (if the sensor is not the issue): $150 – $300 USD.
- Professional Labor (if hired): $150 – $250 USD.
Warning:
Always disconnect the refrigerator from the power supply before removing any panels or touching electrical components. Failure to do so can result in severe electric shock or damage to the Main Control Board. If the unit has been recently running, be cautious of the evaporator coils as they may be extremely cold or have sharp fins.
Repair Difficulty:
DIY (Intermediate): Replacing the Freezer Sensor is a manageable task for most homeowners with a multimeter and basic tools. However, if the issue lies within the Main Control Board or a complex wiring harness failure, a Professional technician is recommended.
